Wetherproof Telecom Outdoor Wall Enclosure With Heat Exchanger Cooling UPS Battery Cabinet
Summary
This cabinet can contains 16U 19” power/equipment and one layer battery. Support wall mounted installation. Using high quality galvanized steel material, waterproof, moistureproof, dustproof, and corrosion resistance.
Application Fields
ESEL company provides full range of temperature control products and cabinet solutions for
- Telecommunication
- Data Center
- Base station
- Solar based installations
- Wireless cell sides & switches
- Industry Automation
- Energy Storage
Specifications
| Model | ET6565115W-UP |
| External Dimension W×D×H | 650×650×1150mm |
| Internal Dimension W×D×H | 550×550×950mm |
| Layout | 1 compartment for and 16U equipment and one layer battery |
| Door | With one front door,and anti-theft three point lock for outdoor cabinet (support padlock) |
| Hinge | Embedded |
| Material | Galvanized steel; double wall, 1.5mm thick outer plate, 0.8mm thick inner plate. There are heat insulation between inner wall and outer wall. The insulation material is 20mm PEF. (single wall with heat insulation is optional) |
| Cable enter method | On the bottom |
| Color | RAL7035, powder coating finish |
| Ingress Protection | IP55 |
| Noise Level | 60-65dB |
| Equipment Installation Method | 19" rack and battery shelf |
| Temperature Control Cooling | 800w 48vdc heat exchanger+ 2*48vdc fans |
Working environment
| Temperature | Temperature | Working Temperature: -20°C ~ 55°C |
| Storage Temperature: -40°C ~ + 70°C |
| Transport Temperature: -50°C ~ +70°C |
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1124 × (1±5%)W/m2 |
Cabinet Cooling
Heat exchanger
Qty: 1
- Cooling capacity: 80W/K(800W)
- Input voltage: DC48V
- Temperature control mode: intelligent temperature control, can be automatically adjusted according to the cabin temperature
- Protection level: IP55
- Communication mode: RS485
Fan
Qty:2
Input voltage: DC48V
Rectifier System
GPE4890, 90A, DC48V,1U, 4800W including: Power distribution frame x 1
30A rectifier module x 3 Monitoring module x 1
Lead Acid Battery
Qty: 4
Model: SP12-26, 12V 26Ah
Breaker
AC input C32A 2P*1
Illumination
DC48V LED lamp with one door switch

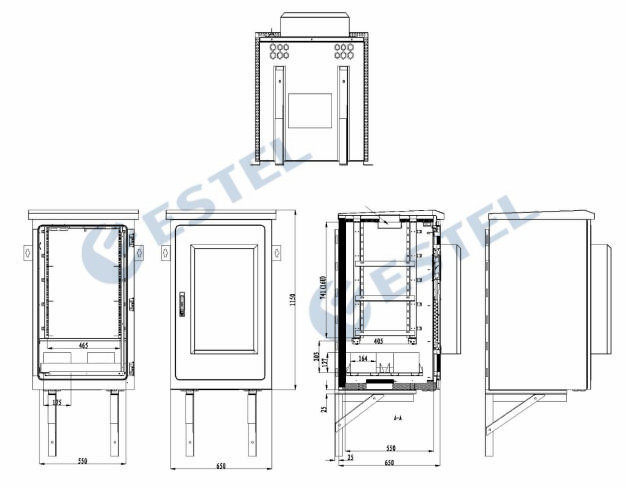

Cabinet Drawing
Details Picture
Cabinet Picture
Cabinet Packing

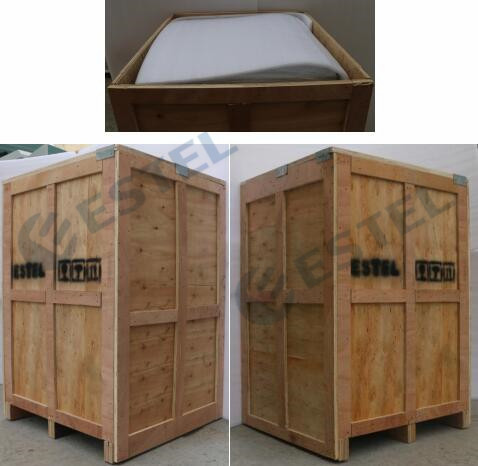

The cabinet packing is wooden case is free fumigation plywood, suitable for export, in compliance with GB3873-83, damp proof and shock proof. The outside of the packing is painted with damp proof sign, shock proof sign, direction sign, etc.
