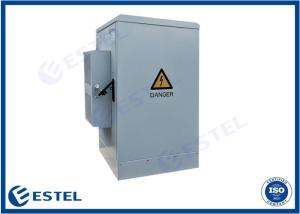

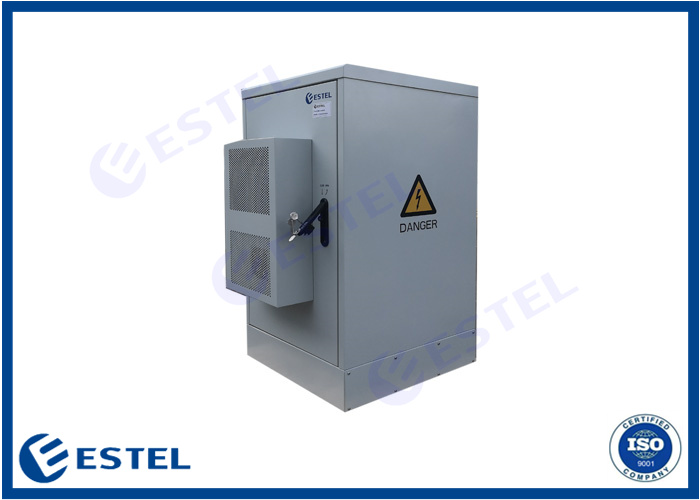

Anti Theft Outdoor Equipment Cabinet 600W 220VAC 50Hz Air Conditioner
1. Application
The cabinet is a type of cabinet or cage that you use for storing different electrical components.
It is common in various industrial applications given that it can house as many components as possible.
This type of enclosure is also common in other applications including street lighting, traffic control, and solar power among others. It come in different designs, shapes as well as sizes.
2. Features
(1) The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.
(2) Cabinet cooling: air conditioner.
(3) The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There are cable inlet individually for power cable, signal cable and optical cable.
(4) All the cables used in the cabinet are made from flame retardant materials.
3. Technical Parameters
| Item | Type | Technical Parameter |
| Structure | Dimension | External Size H*W*D 1100*650*650mm |
| Layout | One compartment, used for installing 19” equipment |
| Equipment Installation Method | 19” rack |
| Door | With one front door, and anti-theft three point lock for outdoor cabinet (support padlock) |
| Material | Galvanized steel, single wall with thermal insulation |
| Structure | Assembled |
| Ingress Protection | IP55 |
| Temperature Control | Cooling | Air conditioner and fan |
| Lighting | LED lamp | 220VAC |
| Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
| Storage Temperature: -50°C ~ + 70°C |
| Transport Temperature: -50°C ~ +70°C |
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1120 × (1±5%) W/m2 |
4. Accessories List
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Telecom Cabinet | 1 | Set | (1) External Dimension H×W×D 1100× 650× 650mm. (2) One compartment: including 20U 19” rack. (3) With one front door, with three point lock for outdoor cabinet. (4) Material: galvanized steel, single wall with thermal insulation. (5) Floor installed. |
| 2 | Air Conditioner | 1 | Set | Compressor type air conditioner Cooling Capacity: 600W Power Supply: 220VAC, 50Hz |
| 3 | Fan | 2 | Set | 220VAC |
| 4 | LED Lamp Switch | 1 | PC | For controlling LED lamp on/off |
| 5 | LED Lamp | 1 | PC | 220VAC |
| 6 | Environment Monitoring System | 1 | Set | 1× environment monitoring unit,19”, 1U, 220VAC, SNMP communication 1× smoke sensor, 1× water sensor, 1× temperature & humidity sensor, 1× door sensor, |
| 7 | Package | 1 | Set | Wooden Case |
5. Cabinet Drawing
6. Cabinet Layout
7. Cabinet Package and Shipment
Wooden case with pallets.
FAQ
Q1: Are you a manufacturer?
A: Yes, we are a experienced manufacturer with our own design and production lines.
Q2. Do you have any MOQ limit for outdoor cabinet ?
A: Low MOQ, 1pc for sample checking is available.
Q3: Can I get sample order?
A: Yes, we would like to get your sample order for testing our quality, the sample cost is paid by the customer.
Q4: Are you able to customize items with design or logo?
A: Yes, OEM & ODM is available.
Q5: How do you ship the goods and how long it will take?
A: We normally make shipment by sea or air which usually takes about 10- 50 days depend on the destination.
Q6: How long is the product warranty ?
A: We guarantee all our products 12 months warranty.
