32U One Compartment Outdoor Telecom Cabinet With 20mm PEF Heat Insulation
1. Description
Cabinets are floor mountable with bottom entry equipped for cable or conduit entrance. Input, output and remote alarm connections are wired to internal terminal lugs that are easily accessible.Output voltage, current limits and alarm levels are easily adjustable. Has the advantages of high integration, small floor area, flexible expansion, simple installation, energy saving, etc.
2. Features
Doors: Lockable, With 1 front doors, and anti-theft 3-point lock with padlock optional.
Installation mode: installed on a concrete floor.
Heat Insulation: 20mm PEF heat insulation
Cabling mode: routed in and out from the bottom.
Including -48VDC illumination lamp.
3. Technical Parameters
| Item | Type | Technical Parameter |
| Structure | Dimension | External Dimension: W×D×H 750×750×1750mm Internal Dimension: W×D×H 650×650×1450mm (32U) |
| Layout | 1 compartment |
| Equipment Installation Method | 19” rail |
| Door | With one front door, and anti-theft three point lock for outdoor cabinet (support padlock) |
| Material | Galvanized Steel,single wall with heat insulation |
| Ingress Protection | IP55 |
| Temperature Control | Cooling | Fans |
| Lighting | LED lamp | 48V LED lamp |
| Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
| Storage Temperature: -50°C ~ + 70°C |
| Transport Temperature: -50°C ~ +70°C |
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1120 ×(1±5%)W/m2 |
4. Accessories List
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Telecom Cabinet | 1 | PC | (1) External Dimension: W×D×H 750×750×1750mm Internal Dimension: W×D×H 650×650×1450mm (32U) (2) One compartment: 19” installation (3) With one front door, and anti-theft three point lock for outdoor cabinet (support padlock) |
| 2 | Auxiliary Direct Ventilation Fans | 2 | PC | DC48V, installed on the front door. |
| 3 | LED Lamp | 1 | PC | AC220V |
| 4 | LED Lamp Switch | 1 | PC | For controlling LED lamp on/off |
| 5 | Power Distribution Unit | 1 | PC | Grade B Lightning Proof AC Input: 63A/2P×1; AC Output: 16A/1P×4; DC Output: 16A/1P×4 Input Voltage: AC220V, 50Hz |
| 6 | Package | 1 | PC | Wooden Case |
5. Cabinet Dimension
(1) External Dimension: W×D×H 750×750×1750mm
Internal Dimension: W×D×H 650×650×1450mm (32U)
(2) One compartment: 19” installation
(3) With one front door, and anti-theft three point lock for outdoor cabinet (support padlock)
6.Power Distribution Unit
Grade B Lightning Proof AC Input: 63A/2P×1;
AC Output: 16A/1P×4;
DC Output: 16A/1P×4
Input Voltage: AC220V, 50Hz
7.Cabinet Door Lock
Damage resistance of the theft proof lock meets GA/T 73-1994 “Mechanical Anti-theft Lock” class B requirement, supporting padlock.
8.Cabinet Package

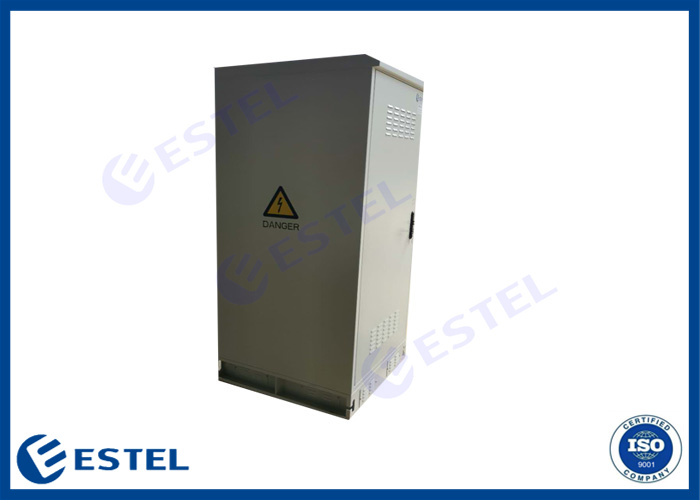

9.Cabinet Picture
