Waterproof IP55 Outdoor Telecom Enclosure Two Compartments For Base Station
1. Description Of Outdoor Base Station Cabinet
Outdoor telecommunication enclosure is designed to house a variety of equipment, they provide protection from vandalism, dust, rain, snow and dripping water.The cabinets can be equipped with DC Air-conditioners, DC Heat Exchangers, Inverters and much more that is suitable for its environment.Standard special anti-corrosion treatment with extra-long warranty.
2. Selling points and Feature Of Outdoor Base Station Cabinet
- Material: galvanized steel or as customer's requirements
- Cooling System: Air conditioner(Fans,or Heat exchange)
- Protection Level: IP55 ,Waterproof,dust proof.
- Sealed by import seal belt, waterproof design realize the efficient protection
- Machine Protection Solution: the cabinet is designed specifically to protect it from human damage, earthquake and other damages.
- Cabinet design allows natural wind cooling through filtered vents on front door and venting under lip of rain hood
- All fixings are internal to the cabinet to provide a secure solution
3. Technical Parameters
| Item | Type | Technical Parameter |
| Structure | Dimension | External Dimension (W×D×H):1000×1000×1800mm |
| Layout | Two compartments |
| Equipment Installation Method | 19” standard rack |
| Door | With one front door and one rear door, special lock for outdoor cabinet (support padlock) |
| Material | galvanized steel, with double walls, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm. There are heat insulation between inner wall and outer wall. The insulation material is 20mm PEF. The cabinet is assembled type. |
| Structure | Assembled |
| Ingress Protection | IP55 |
| Temperature Control | Cooling | 1500W Air Conditioner |
| Lighting | LED lamp | 48V LED lamp |
| Temperature | Temperature | Working Temperature: -40°C ~ + 70°C |
| Storage Temperature: -5°C~45°C |
| Transport Temperature: -40°C~+70°C |
4. Accessories List
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Telecom Cabinet | 1 | Set | (1)External Dimension (W×D×H):1000×1000×1800mm (2) Two compartments; (3) one front door and one rear door, with special lock for outdoor cabinet (support padlock) (4) Material: galvanized steel |
| 2 | Air Conditioner | 1 | Set | 1500W Air Conditioner, AC220V power supply |
| 3 | Power Distribution Unit | 1 | Set | Grade B Lightning Proof AC INPUT: 63A/2P *1; AC OUTPUT: 16A/1P*4; DC OUTPUT: 16A/1P*4 |
| 4 | Environment Monitoring System | 1 | Set | With Smoke Detector , Temperature & Humidity Transmitter ,Tilt & Shock Combination Sensor Water Detection Sensor |
| 5 | Package | 1 | Set | Wooden Case |
5. Application Scope
Outdoor Base Station Cabinet is mainly used in communication base station, such as 4G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.

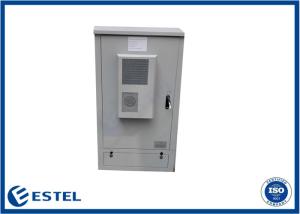

6. Cabinet picture:
7. Power Distribution Unit
Grade B Lightning Proof
AC INPUT: 63A/2P *1;
AC OUTPUT: 16A/1P*4;
DC OUTPUT: 16A/1P*4
8. Cable Inlet
All feeder cable and other external cables all use bottom wiring method.There are 4 cable inlets at the bottom of the cabinet.
10. Wire Routing Design
Users can put cables from the top of the pole. After going through the pole, cables will enter the cabinet through the bottom cable entrance hole.

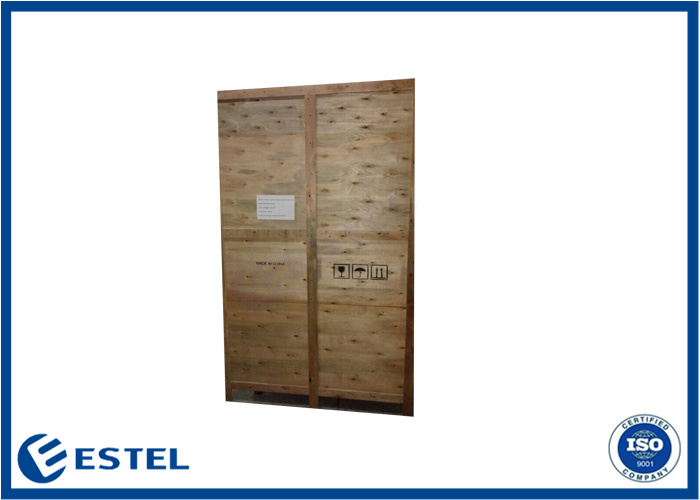

12. Packing
The cabinet packing is wooden case in compliance with GB3873-83, damp proof and shock proof. The outside of the packing is painted with damp proof sign, shock proof sign, direction sign, etc.
